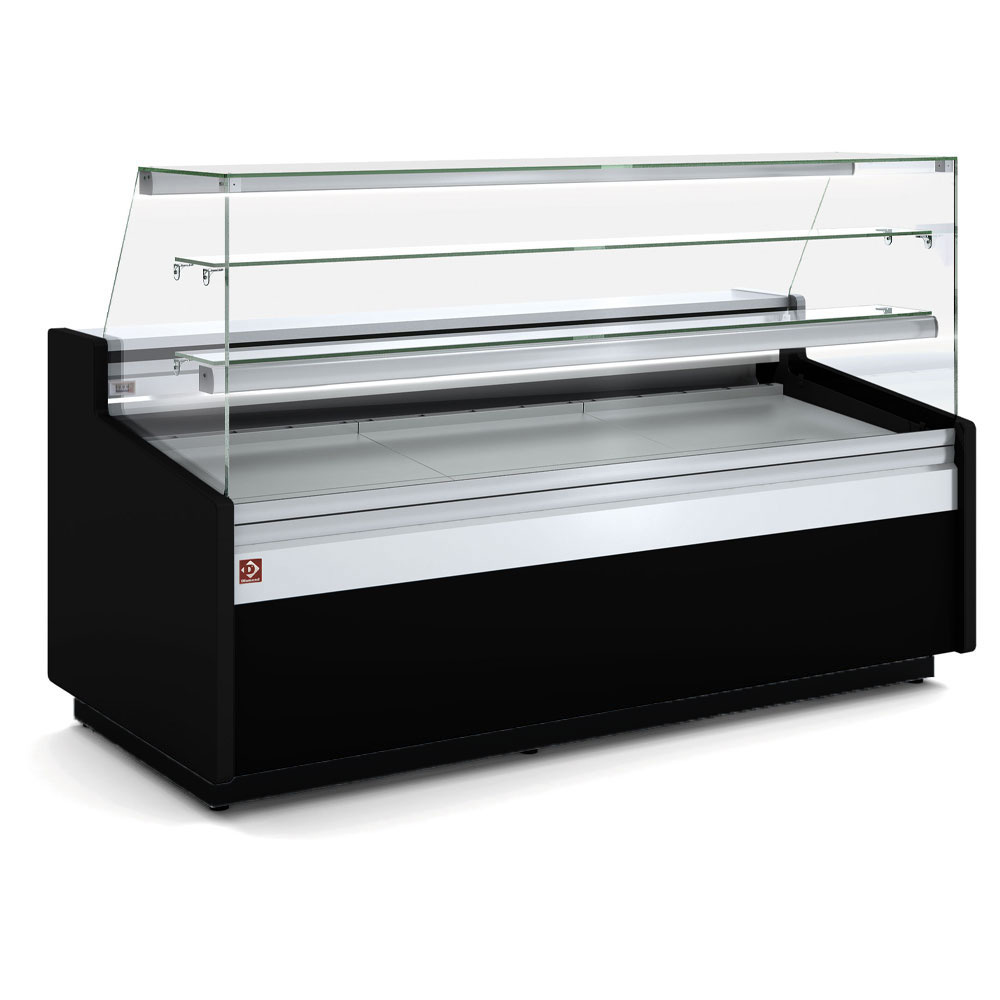

VENTILATED PASTRY COUNTER DISPLAY ATLANTA ATL/13-PV-B5
VENTILATED PASTRY COUNTER DISPLAY ATLANTA ATL/13-PV-B5
Atlanta Line with pastry glass, with storage - BLACK. Two intermediate glass.
Double LED lighting of the display (under the upper and lower glass).
Double LED lighting of the display (under the upper and lower glass).
Manufacturer: DIAMOND
Available in:
3-4 weeks
Dimensions (mm):
1305 x 960 x 1300
Temperature (°C):
0° +5°
Power (kW):
1,08
Weight (kg):
220
Power supply:
230/1N 50HZ
Base price 3 358 €
Salesprice with discount
Sales price 4 063 €
Price / kg:
Product description
VENTILATED PASTRY COUNTER DISPLAY ATLANTA ATL/13-PV-B5
- Atlanta Line with pastry glass, with storage - BLACK.
- Two intermediate glass.
- Double LED lighting of the display (under the upper and lower glass).
- Thermoformed ABS sides, front and rear in plastic coated sheet metal.
- Tempered glass windows, 90° straight front window, openable and foldable with safety stop (easy maintenance).
- Anodized aluminum profiles.
- Exposure in stainless steel AISI 304, depth 700 mm (EURONORM and GASTRONORM ).
- Plexiglass deflector, allowing a homogeneous distribution of the temperature.
- AISI 304 stainless steel work surface.
- LED lighting of the exposure.
- Ventilated evaporator, treated against the corrosion of food acids (adjustable fan speed device).
- Built-in compressor unit, climatic class 4 (+30°C & RH 55%).
- Refrigerant gas R290.
- Control panel with electronic regulator (digital display), light switch and single-phase plug.
- Analogic thermometer in the exposure.
- Automatic defrosting, with self-evaporation of condensate.
- With refrigerated reserve (neutral model with "non-refrigerated" reserve).
- Frame made of epoxy-coated steel sheet, CFC-free polyurethane insulation.
- The unit is built in compliance with current CE standards.
OPTION:
- Supporting structure (ventilated cold) in AISI 304 for gastronome tray.
- NB: KJ/ALT junction kit required between each module..
PLUS:
- A pure, minimalist design.
- Highlight your desserts, cakes, macaroons... but also salads, sandwiches, yoghurts, drinks.
- Thanks to their large EURONORM and GASTRONORM exposure surface and their LED lighting ...
- "Eco-responsible" with ecological refrigerant R290.
- Fan assisted cooling with fan speed regulation, allowing to adapt to any type of food or activity, electronic regulation.
- Can be coupled for a flexible configuration (by means of an assembly kit).
- Several versions available: low, high and pastry glass.
- Neutral or box elements, 90° and 45° angular elements, both open and closed.
